Last quarter, an automation manager walked into a leadership review with a clean slide.
“312 bots live.”
“64 processes automated.”
“1,400 hours saved.”
The room nodded. Someone even smiled.
Then the ops lead asked the only question that mattered.
“Great. So what changed for the customer and the team?”
Silence. Not because the program had failed, but because the program had been measured like a hobby. Lots of activity. Very little proof of impact.
That is the trap with RPA. Bot counts feel like progress because they are easy to count. Outcomes are harder because they require clarity: what problem, what workflow, what baseline, what changed, and what stayed messy.
Gartner has a blunt warning hidden in a broader point about hyperautomation: many organizations struggle to master measurement, which is why programs look busy but do not always show value in a way leadership trusts. (Gartner)
This post is a practical way out of that problem.
You will learn:
- why “number of automations” does not equal value
- which metrics actually tie to ROI (cycle time, rework, exception rate)
- what to measure when humans stay in the loop
- a simple ROI model an ops lead will accept

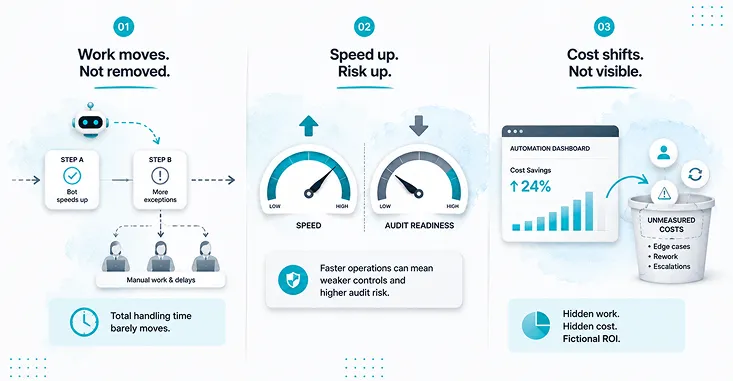

Why bot counts mislead smart teams
Bot counts measure output from the automation team, not outcomes for the business.
A single bot can be tiny (copy paste between two fields) or massive (closing an end to end case across systems). Counting both as “1 automation” is like counting “1 meeting” without caring if it fixed anything.
Bot counts also hide three uncomfortable truths:
- Automation can move work, not remove work.
A bot can speed up step A but create more exceptions in step B. The customer still waits.
- Automation can increase risk silently.
If a bot makes decisions without strong logging, approvals, and access controls, you might be faster while becoming less audit ready. NIST’s log management guidance exists for a reason: organizations need log data and practices to support accountability and security. (NIST Computer Security Resource Center)
- Automation can shift cost into “invisible” places.
People still handle edge cases, rework, and escalation. If you do not measure that, your ROI is fiction.
So what should you measure instead?
Measure the workflow.

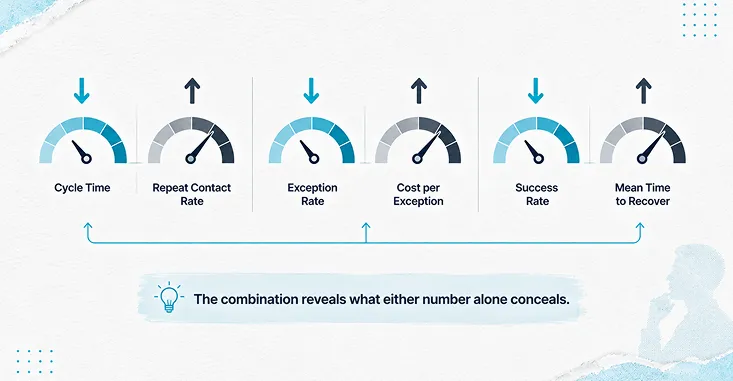

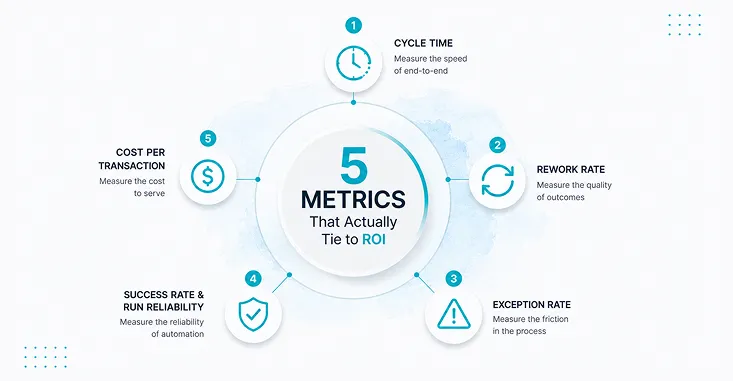

The metrics that actually tie to ROI
A clean way to think about metrics is this: ROI comes from speed, quality, cost, and risk.
Here are the metrics that map to those four buckets.
1) Cycle time (speed that customers feel)
Cycle time is the time from “request starts” to “request completed.”
Not bot runtime. End to end time.
It captures the truth ops teams live with: a bot can finish in seconds, but the case can still take two days because it sits in a queue or waits for a human decision.
If you track only bot runtime, you will celebrate a system that still breaks SLAs.
A practical baseline:
- average cycle time today (by request type)
- average cycle time after automation (same request type)
- cycle time distribution (p50, p90) so you see long tail pain
Why it ties to ROI:
- faster cycle time reduces backlog
- faster cycle time reduces repeat contacts and escalations
- faster cycle time protects SLAs
2) Rework rate (the hidden tax)
Rework is when something has to be fixed because it was done incorrectly or incompletely.
In operations, rework is expensive because it burns time twice and usually touches multiple teams.
Track:
- % of cases that return for correction
- time spent per rework case
- top causes (missing data, wrong routing, wrong status update)
Why it ties to ROI:
- rework reduction is real savings, not theoretical “hours saved”
3) Exception rate (where automation breaks)
Exceptions are cases the bot cannot complete and routes to a human.
Exception rate is one of the most honest metrics you can track because it shows friction.
A clear definition and formula:
- Exception rate = (exceptions ÷ total volume) × 100 (moxo.com)
Track it by:
- workflow type
- reason code
- system dependency (CRM down, field missing, policy edge case)
Why it ties to ROI:
- exceptions drive human cost
- exceptions often drive delays
- exceptions often correlate with customer dissatisfaction
4) Success rate + run reliability (health, not hype)
If you use a platform like Power Automate, Microsoft explicitly defines operational metrics such as success rate, run count, and duration. Even if you are not on Power Automate, the categories are useful: you need to know what ran, how often it failed, and how long it took. (Microsoft Learn)
Track:
- success rate (completed runs ÷ total runs)
- failure causes (system errors vs data issues vs rule gaps)
- mean time to recover (how fast you fix failures)
Why it ties to ROI:
- unreliable automation creates operational drag
- reliability determines whether you can scale safely
5) Cost per transaction (the CFO friendly metric)
If there is one metric leadership understands instantly, it is cost per transaction.
Cost per transaction = (total cost to process requests) ÷ (total requests)
Do it before and after, for the same request class.
Include:
- human time cost (fully loaded)
- automation run cost
- support and maintenance cost
- exception handling cost
Why it ties to ROI:
- it turns automation into a unit economics story

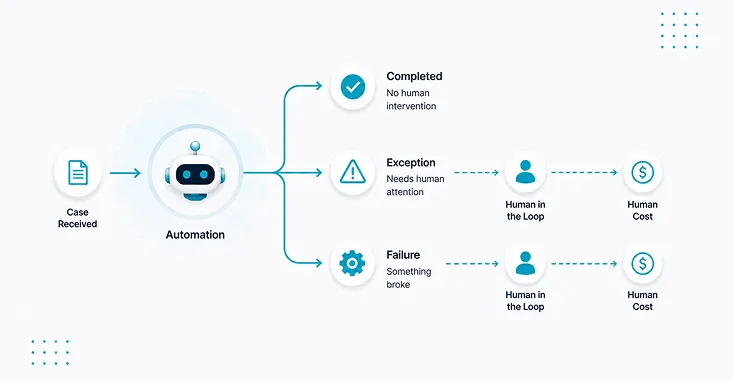

What to measure when humans stay in the loop
In real operations, humans do not disappear. They supervise, approve, and handle edge cases. Measuring those human steps is not optional.
Human in the loop metrics that matter:
Exception handling time
How long do exceptions sit before a human picks them up, and how long does resolution take?
This is often where “fast automation” turns into “slow customer experience.”
Accuracy and error prevention
When humans intervene, what do they catch?
A useful metric here is “corrected errors ÷ total errors,” which frames humans as a quality control layer rather than a cost sink. (moxo.com)
Cost per exception
If exceptions cost more than the standard workflow, they can destroy your ROI.
Moxo’s HITL KPI framing is helpful here: track the average expense per human intervention, not just how many exceptions occurred. (moxo.com)
Exception trend over time
Exception rates should improve as rules are tuned and patterns are learned. If they do not, your automation may be hitting the wrong use case or missing key data. (moxo.com)
This is the part most teams skip, then wonder why leadership loses faith.

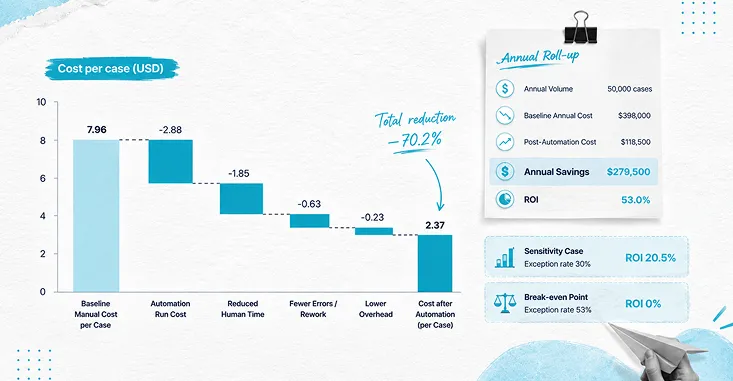

A simple ROI model your ops lead will accept
Ops leads trust models that are:
- based on real baselines
- conservative
- easy to audit
- tied to the workflow
Here is a simple model that works.
Step 1: Pick one workflow and one unit
Example: “address change requests” or “refund approvals.”
Pick one unit of work: one request, one case, one ticket.
Step 2: Baseline the current cost
Baseline per case:
- human handling time (minutes)
- rework time (minutes)
- exception time (minutes)
- error cost (if you can estimate)
Step 3: Measure the new cost
After automation, measure per case:
- human time still required
- exception rate and handling time
- rework rate
- automation run cost
Step 4: Calculate savings per case
Savings per case =
(old human time + old rework time) − (new human time + new exception time + new rework time)
Multiply by fully loaded cost per minute.
Step 5: Add quality and risk savings carefully
Only add what you can defend.
- fewer compliance exceptions
- fewer customer impacting errors
- fewer escalations
If you cannot defend a dollar amount, keep it as a separate “risk reduced” narrative. Do not force a fake number.
Step 6: Subtract the real costs
Subtract:
- platform licensing share (if applicable)
- build cost amortized over a period
- ongoing support and maintenance
Final:
ROI = (annual benefits − annual costs) ÷ annual costs
If you do this for 3 workflows, you will have a portfolio story leadership trusts.

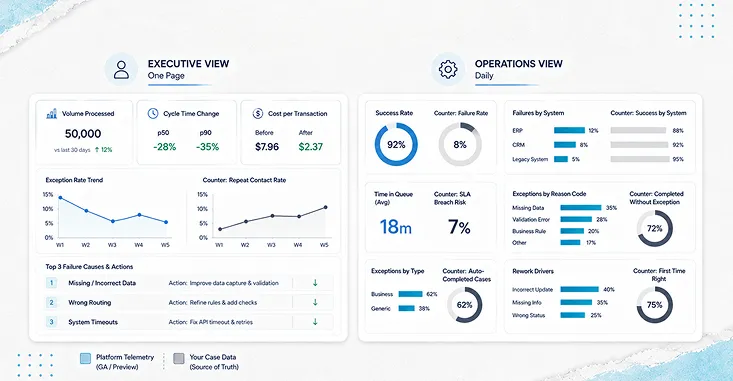

What your dashboard should look like (so you do not fool yourself)
Create two views.
Executive view (one page)
- volume processed
- cycle time change (p50 and p90)
- cost per transaction change
- exception rate trend
- top 3 failure causes and what is being done
This is where you win trust.
Ops view (daily)
- success rate and failures by system
- queue time and SLA breach risk (if you track SLAs in queues, platforms often expose SLA violation counts as a key metric) (Microsoft Learn)
- exceptions by reason code
- rework drivers
This is where you protect performance.
The final mindset shift
McKinsey’s operating model point is worth remembering: sustainable value comes from improving workflows end to end, not from reorganizing boxes or celebrating activity. Automation is the same. The unit of value is the workflow, not the bot. (McKinsey & Company)
IBM’s RPA framing also lands here: the promise is productivity and fewer errors, plus the ability to manage bots and track metrics. That only becomes real when measurement is outcome based. (IBM)
So next time someone asks, “How many bots did we build?”, you can answer politely.
Then open the dashboard that shows what changed.
FAQs
What are vanity metrics in RPA?
Vanity metrics are numbers that look impressive but do not prove business value, like bot count, number of automations, or total runs without outcomes.
What are the best KPIs to measure RPA success?
Cycle time, rework rate, exception rate, success rate, and cost per transaction are the core ones because they map to speed, quality, reliability, and cost.
How do I measure automation success when humans are still involved?
Track exception rate, exception handling time, accuracy and error prevention, cost per exception, and exception trend over time. (moxo.com)
How do I present ROI without overclaiming?
Use a conservative model: baseline time and cost per case, measure after, subtract real ongoing costs, and keep risk reduction as a separate narrative unless you can defend the numbers.
What is the fastest way to start measuring correctly?
Pick one workflow, define one unit (one case), baseline cycle time and rework, then track exception rate and cost per case weekly for 4 to 6 weeks.
